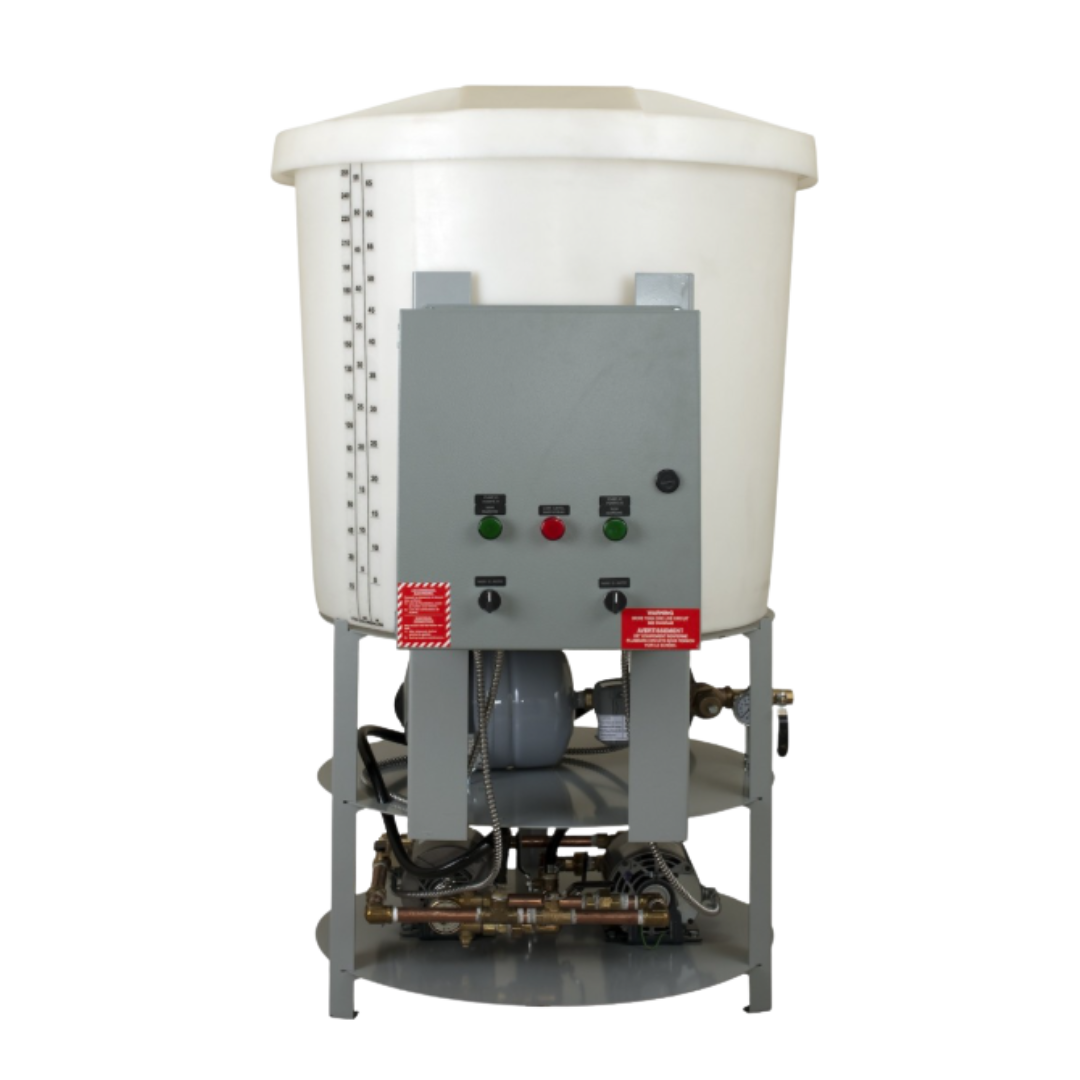

Twin - Glycol Makeup Packages

The twin GMPT unit is designed to automatically supply a pressurized solution, such as glycol and water, to a combined two unit closed loop heating, chilled water, snowmelt, radiant heating, sprinkler, or process control system to ensure minimum system pressure requirements are met. These systems are equipped with two alternating fail-safe motors, pumps, and HOA controls that allow one pump to operate if the other pump malfunctions. These units are also equipped with an adjustable pressure reducing valve (PRV), pressure gauge, and low level alarm that cuts power to the pumps and actuates an audible and visual alarm when solution levels are too low.

• Instruction Manual
• Submittal


• Dimensions in Inches:
  34 x 40 x 56 (50 Gallon)
  34 x 40 x 80 (100 Gallon)
• Pressure Range (PSI): 10-70
• Make-Up Capacity (GPM @ PSI): 1.8 @ 70
• Approx. Shipping Weight (lbs):
  1/3 HP – 50 Gal: 236 lbs
  1/3 HP – 100 Gal: 226 lbs
  1/2 HP – 50 Gal: 240 lbs
  1/2 HP – 100 Gal: 230 lbs

• Maximum Temperature: 160 F
• Factory Discharge Pressure Setting: 12 PSIG
• Maximum Discharge Pressure: 70 PSIG (Higher Discharge Pressures Available)
• All electrical components are listed UL/CSA
• Standard Starter Panel UL/CSA 60947-4-1
• Optional NEMA 4X Panel UL/CSA LR19791
• Available Options: High Level Alarm, Protective Skirt
